J-5
J-5 is a full featured machine that improves the bottom line of any company by saving time and money!
Features of the J-5 Carpet Cutting Machine
- One person can unroll, inspect, measure, cut, reverse roll, and wrap all your carpet and vinyl simply and accurately.
- The J-5's steel frame incorporates laser-cut precision and is welded, not bolted, providing you with the strongest and most durable machine frame available.
- PLC control includes multiple preset cut storage and product settings. Foot and inch counter automatically slows down the machine then stops precisely at the programmed measurement.
- Automatic variable speed control allows the user to choose a comfortable speed or slow down the machine for inspection.
- The J-5 can easily be moved on its industrial strength casters. Engage the lifting brakes.

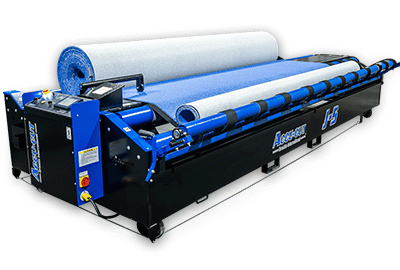

One Person Operation
Wrap-around foot cable control, spring-loaded roll-up arm, speed control, auto-run feature, and open-ended cradles provide for ease of use.
All are standard features on the J-5!

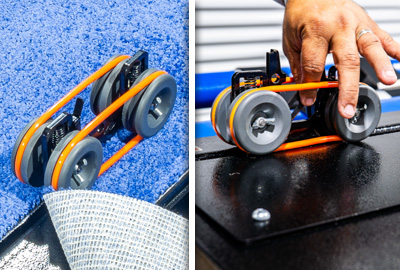

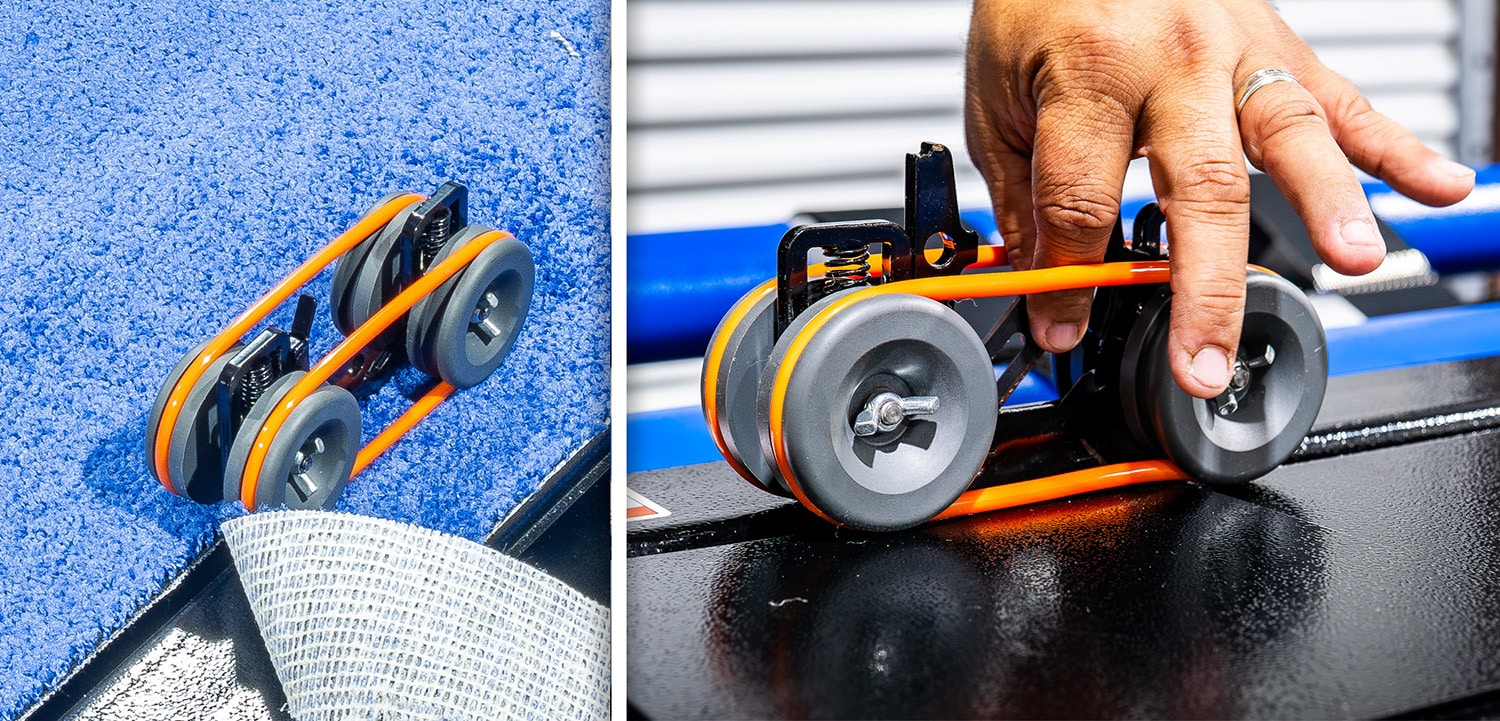

Fast, Straight Cuts
Patented, two-direction, chain-driven cutter uses standard blades and applies pressure to the material being cut.
Get a straight, clean cut every time!

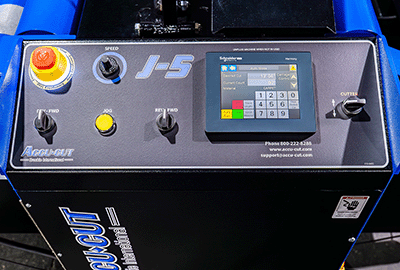

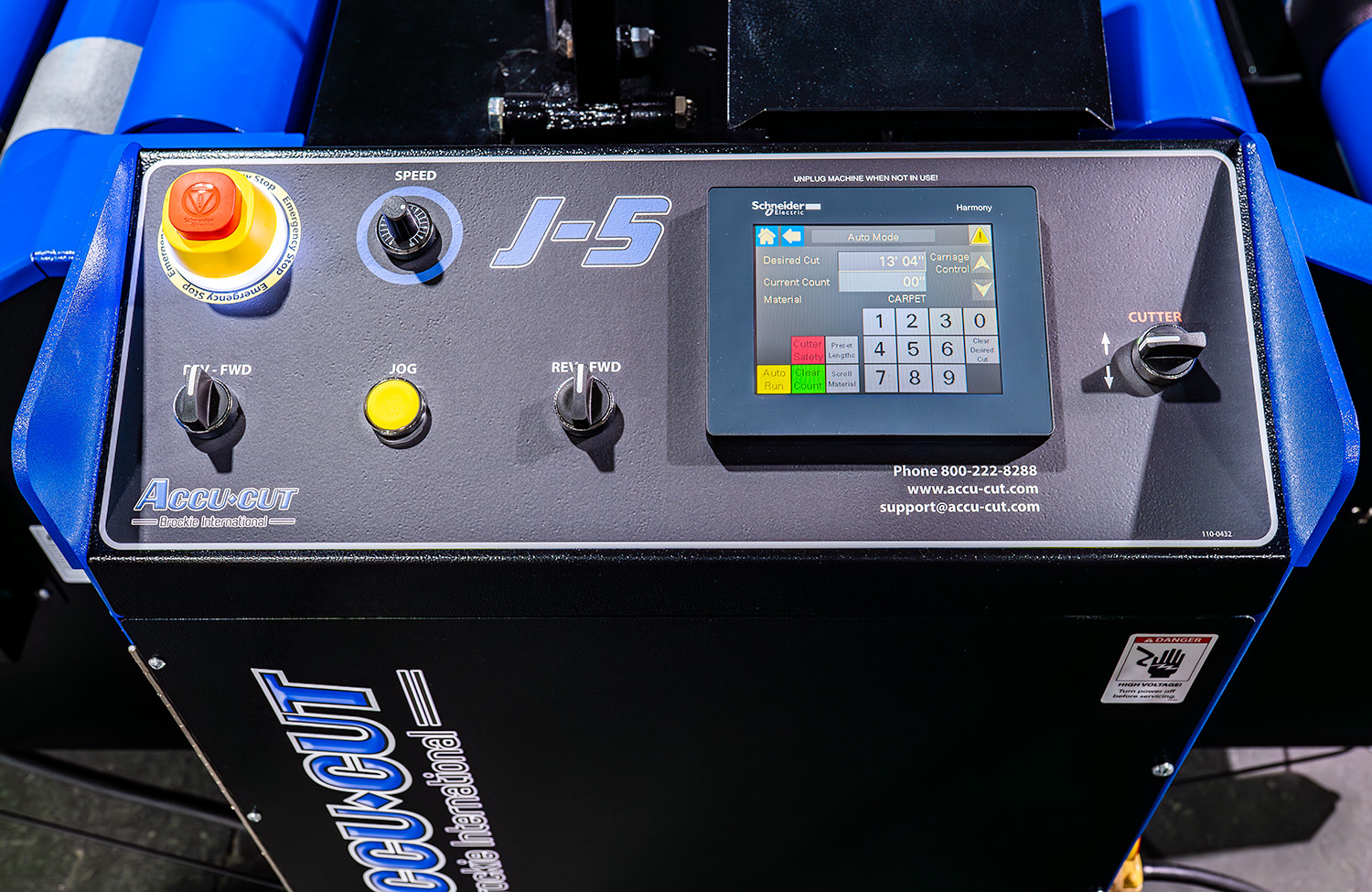

User Friendly Controls
Directional switches control the rollers and cutter - the yellow push buttons activate them. Speed selection dial, easy-to-use PLC interface, and emergency stop button.
An auto-run feature makes operating the machine even simpler!

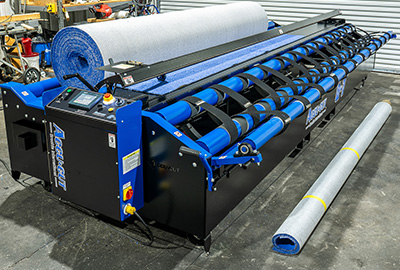

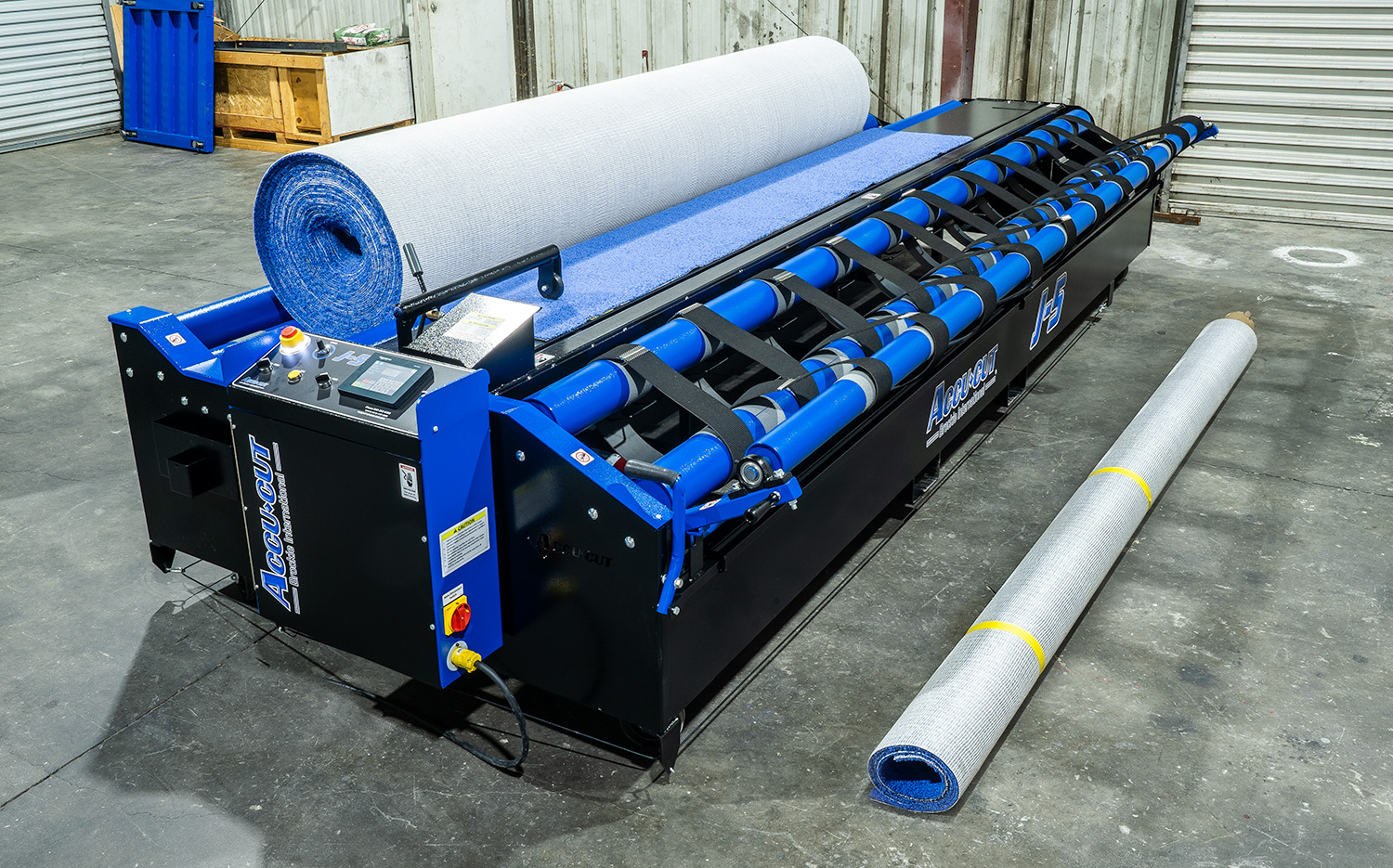

Cut Piece Removal
All Accu-Cut machines are equipped with a cut piece dumping mechanism to offload your cut length.
Make multiple cuts off of one roll without using your forklift to remove the cut length!

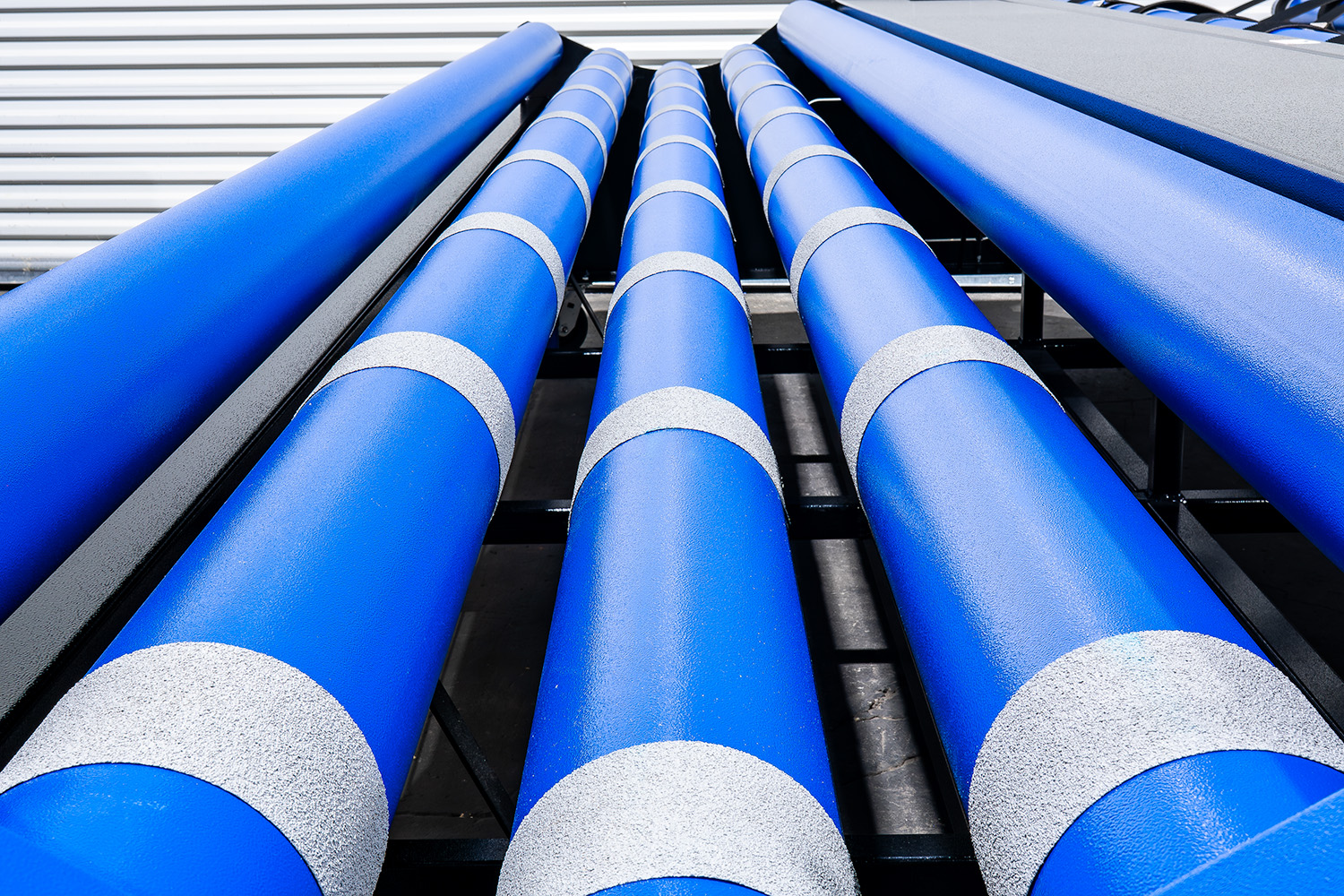

Beltless Load Cradle
The J-5’s open-ended, beltless load cradle holds even the largest rolls. The steel rollers center the material in the cradle.
This helps to ensure the material rolls up straight every time!

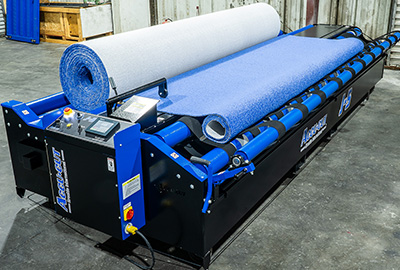

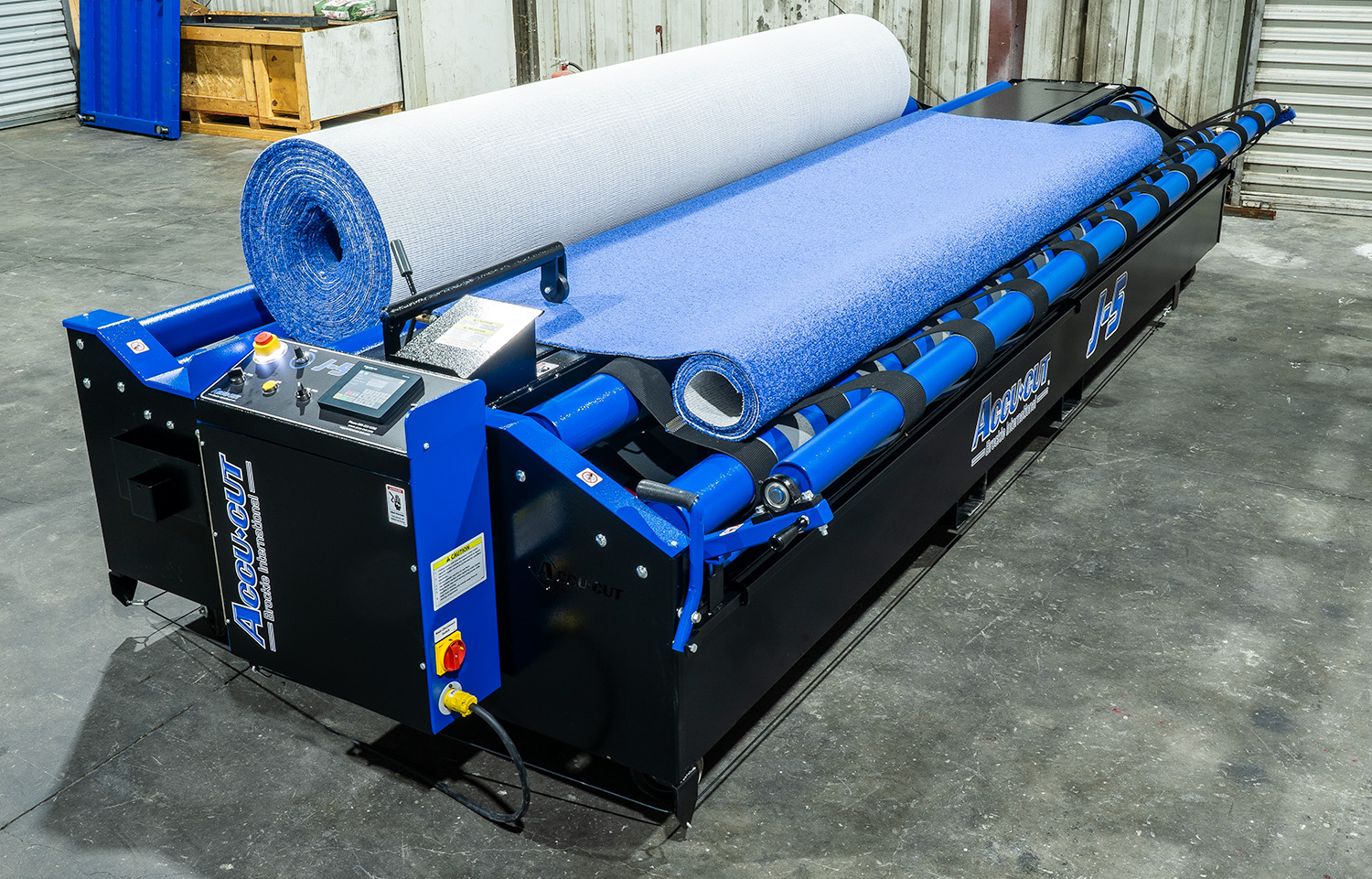

Reverse Roll
Rolling carpet or vinyl pile/pattern side out is a simple one-person, one-step process.
Keep your remnants clean and easily wrap them for display!
Touchscreen PLC Control
Includes a touchscreen foot & inch counter, preset cut storage system, security keypad, cut counter, change blade reminder, multiple product settings, and more.
The machine will automatically stop precisely at the programmed length!

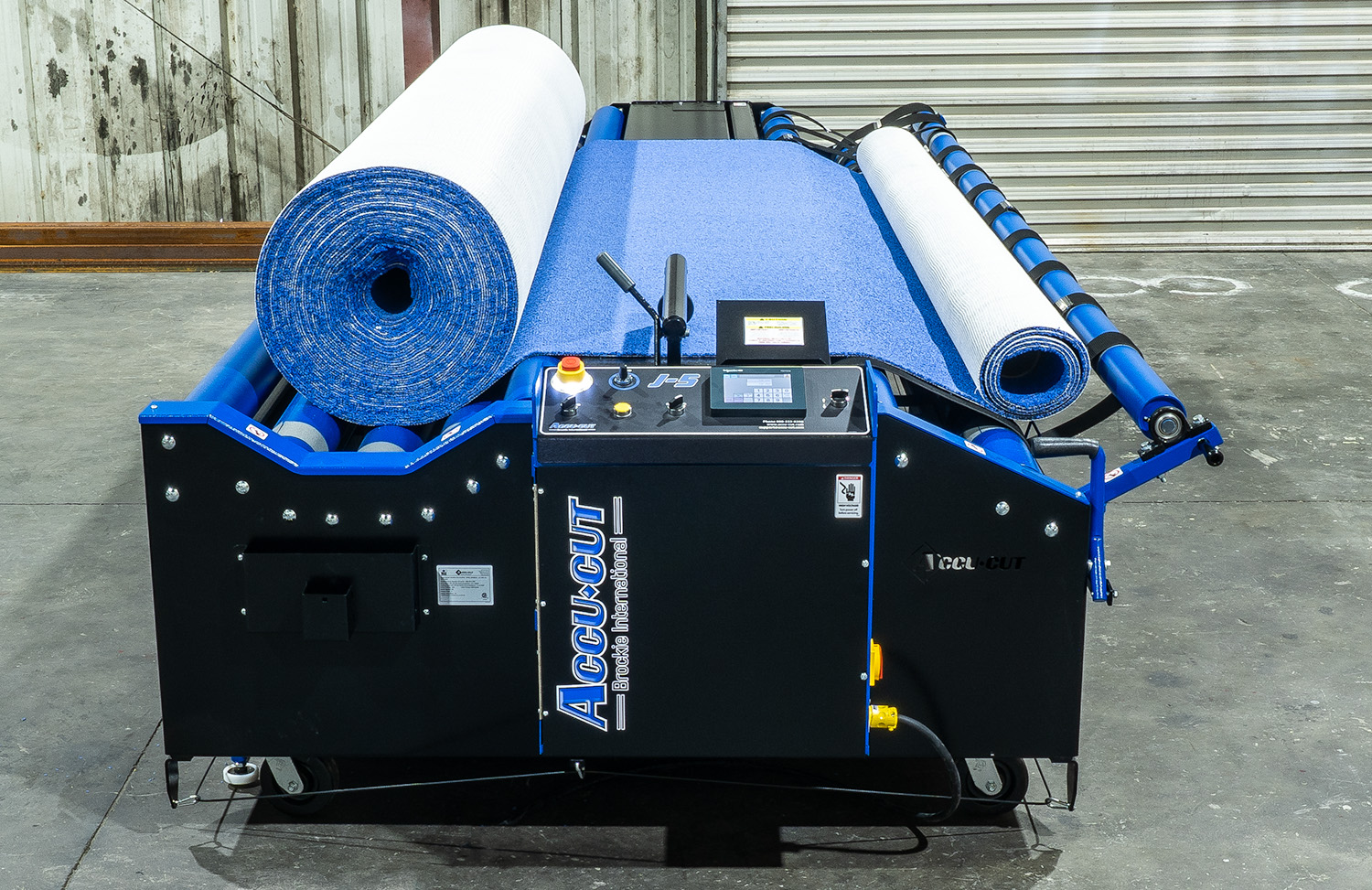

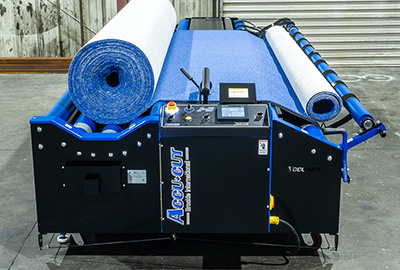

Inspect Material
Material can easily be inspected as it travels across the tabletop.
Inspect the carpet and vinyl before it goes out the door!
Specifications:
Specifications:

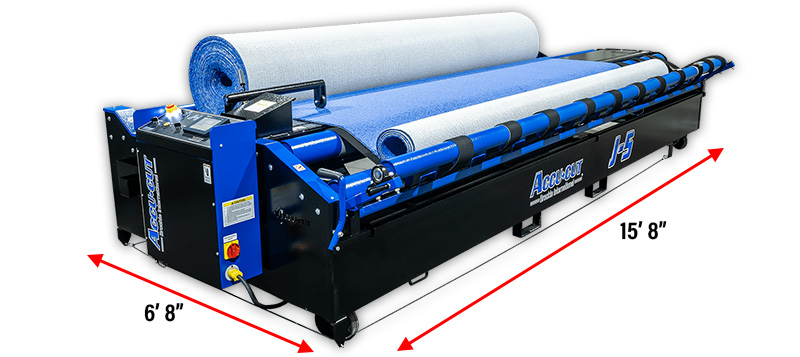

Size: 15' 8" long x 6' 8" wide x 3' 3" high
(4.775m long x 2.03m wide x .99m high)
Weight: 1,875 lbs
Power: 220 volts – single phase / 60 hertz / 15 amps
Blades: Standard, slotted double edge carpet blade
Limited Warranty: 1 year parts and labor, 3 years on frame
Meets all UL and CSA safety standards.
