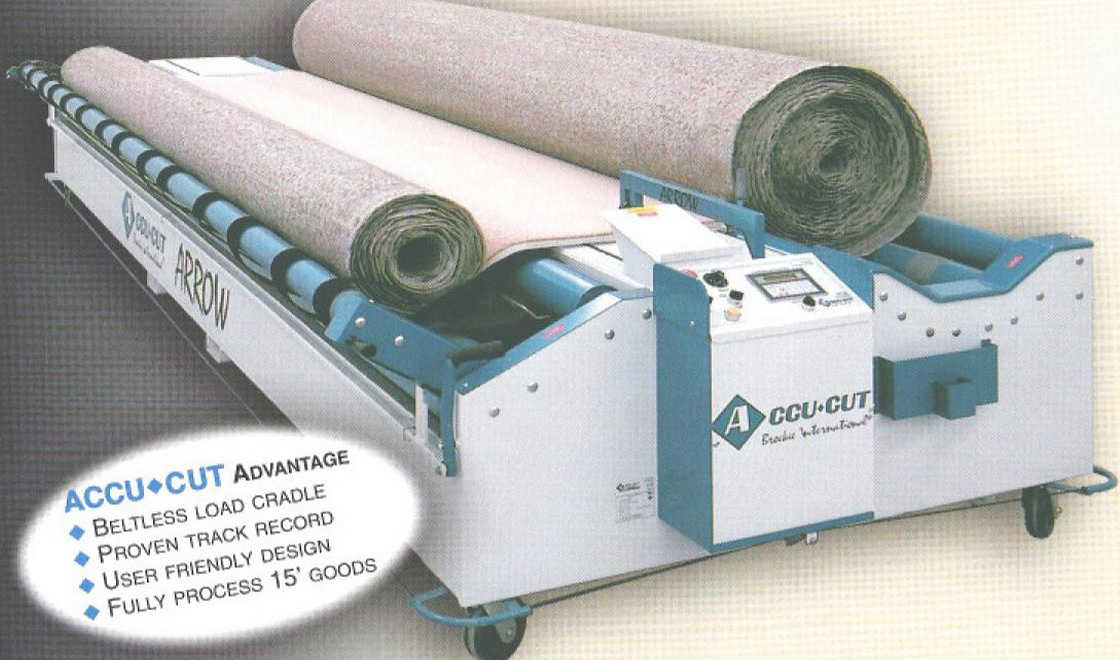

Accu-Cut Refurbished Arrow
With Roll Improver
The Arrow, which will fully process 15-foot-wide goods, is a high-volume, extra-heavyweight machine for all businesses.
Accu-Cut Advantage
- Beltless load cradle
- Proven track record
- User-friendly design
- Fully processes 15-foot-wide goods
- One person can unroll, inspect, measure, cut, reverse roll and wrap carpet and vinyl simply and accurately.
- The large tabletop allows you and your customers to inspect carpet or vinyl before it goes out the door.
- The user-friendly Programmable Logic Controller ensures accuracy for all types of flooring, regardless of pile thickness or backing.
- The Arrow can easily be moved on industrial-strength casters. Lifting brakes raise the machine off the floor and hold it stationary.
- The steel frame incorporates laser-cut precision and is welded, not bolted, for exceptional strength and durability.
- Wrap-around foot cable control lets the operator engage the rollers from the front or side of the machine, simplifying wrapping and taping.

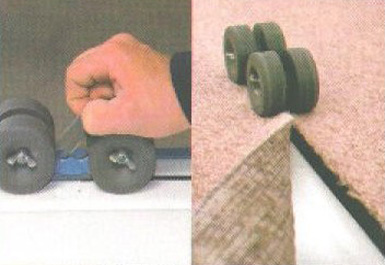

Fast, Straight Cuts
Patented, two-direction, chain-driven cutter uses standard blades and applies pressure to the material being cut.
Get a straight, clean cut every time!

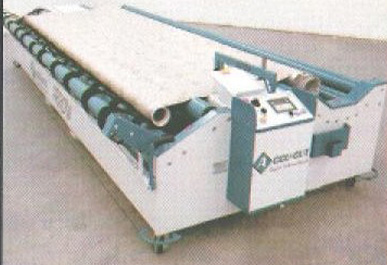

Cuts Vinyl
All Accu-Cut machines will measure, cut and roll vinyl.
You will not have to worry about damaging vinyl by rolling it out on the floor.

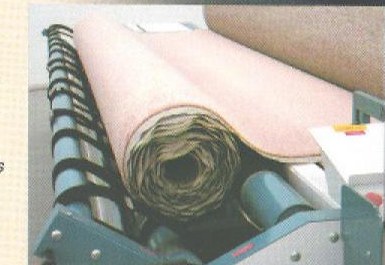

Reverse Roll
Rolling carpet or vinyl pile or pattern side out is a simple one-person, one-step process.
Keep your remnants clean and easily wrap them for display.

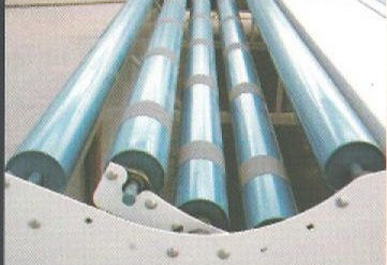

Adjustable Load Cradle
The Arrow’s open-ended, beltless load cradle holds even the largest rolls. The roll improver adjusts the position of the roll.
Get a square cut and material that rolls up straight every time.

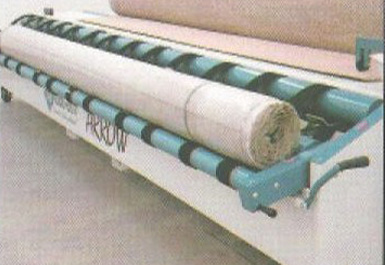

One-Person Operation
Wrap-around foot cable control, spring-loaded roll-up arm and cut-piece dumping mechanism provide exceptional ease of use.
All are standard features on the Arrow.

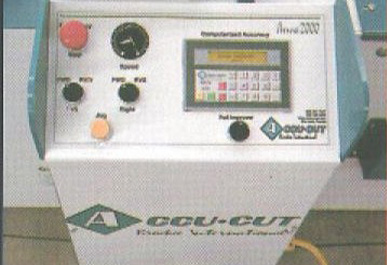

Advanced Variable Speed
Variable-frequency drives automatically adjust each cradle to the proper speed and provide an almost infinite number of speed settings.
This advanced feature makes the Arrow even more user-friendly.

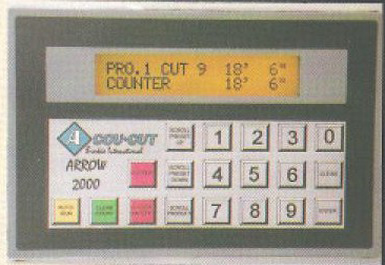

PLC Control
The PLC system includes an auto-stop foot-and-inch counter, cut storage, security keypad, cut counter, blade-change reminder, multiple product settings and more.
Durable controls that are simple to operate.

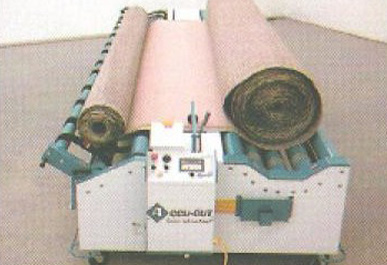

Inspect Material
Material can easily be inspected as it travels across the tabletop.
Inspect carpet and vinyl before it goes out the door.
Specifications
Power: 220 volts, single phase, 60 hertz, 15 amps
Blades: Standard slotted, double-edge blades
Size: 6 feet 6 inches wide × 17 feet 6 inches long × 3 feet 6 inches high
Limited Warranty: Three years parts and one year labor
Meets all UL and CSA safety standards.
Accu-Cut / Brockie International
Corporate Headquarters
28114 County Road 561
Tavares, Florida 32778
1-800-ACCU-CUT 1-800-222-8288
Local: 352-742-0902
Cell: 407-509-3030
Fax: 352-742-0702
Email: [email protected]
Hours: Monday–Friday, 8:00 a.m.–5:00 p.m. EST
SERVICE ◆ QUALITY ◆ INTEGRITY
Call 1-800-222-8288 for more information or to check inventory and pricing
Financing available - up to 84 months
Ask for details All machines sold on a "first-come, first-served" basis. Call for complete details on our refurbished machines.
