Professional
Laser Cutting Machine
For Carpet / Area Rugs

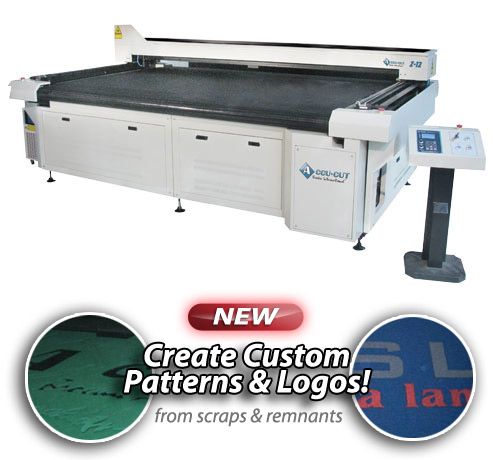

Z-12

Specially developed for the carpet and rug industry. The Accu-Cut Z-12 can precisely cut and engrave on carpet materials. It meets custom requirements and produces rugs of beauty and added value. The pedrail working table coordinating with optional feeding system makes rug automatic batch processing possible . The Z-12's built in exhaust system also makes the Z-12 eco-friendly and safe.

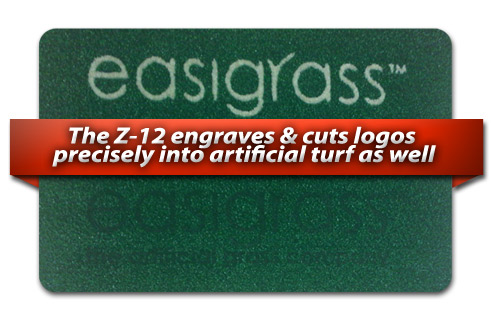

Z-12 easily cuts logos precisely into artificial turf
Laser type CO2 hermetic and detached  laser tube
Laser power 80W, 100W or 150W
Cutting area 2500mm×1200mm , (8'2" x 3'11")
Max cutting speed 100 Ft per minute
Moving system Servo system,5 inch LCD display
Cooling system Constant temperature water chiller
Power supply 220V - 60HZ - 15AMP
Format support AI,PLT,DXF,DST etc
Standard collocation One 550W top exhaust fan, one 3000W bottom exhaust fan,mini air compressor
Select collocation

CO2RF glass laser tube

(80W,100W,150W) hermetic and detached CO2

laser tube, auto feeding equipment



For sales: Call 1-800-ACCU-CUT (222-8288) or email: info@accu-cut.com Outside the U.S. & Canada: Call 352-742-0902.
